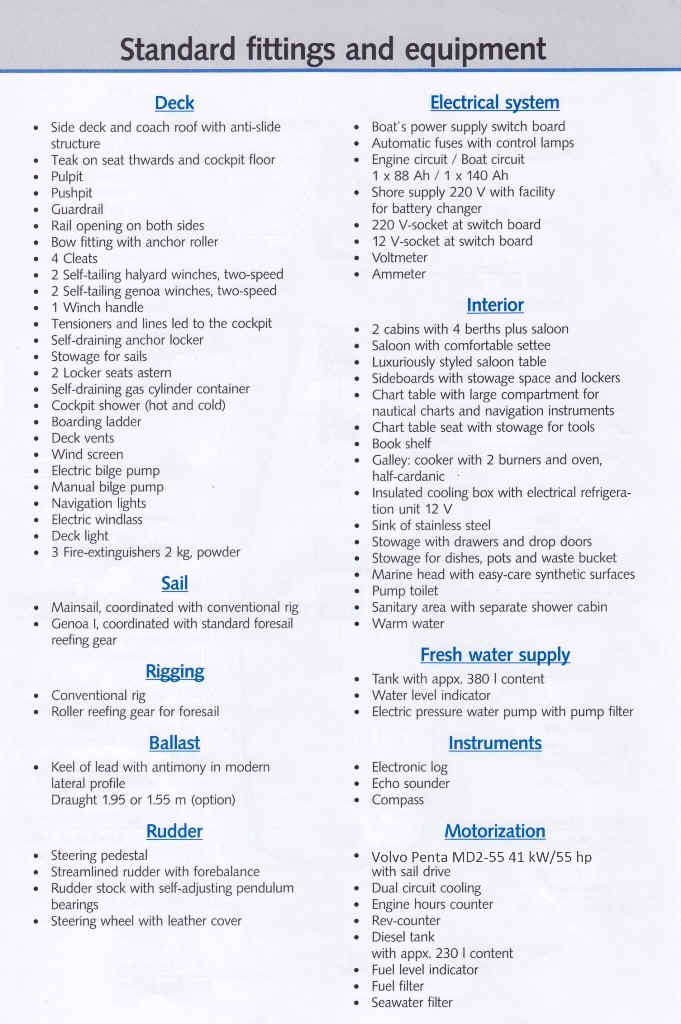

Standard equipment

Back Up Next





Extra equipment

Some of this equipment was installed at the Bavaria factory and the rest was installed by

Pro Nautik AG, the boat yard that delivered the yacht.

Teak planking on decks and coachroofs, this was all recaulked in 2011.

Tempered glass windshield, centre section opening for ventilation.

Lofrans electric anchor winch, with extra remote switch on pedestal.

100 meters of 8mm anchor chain, regalvanized 2012.

21 kg  Genuine CQR anchor, regalvanized 2012.

Deck wash pump with outlet in anchor well.

Extra spring cleats midships.

LFS lifeline system.

Safety harness fastening points in cockpit.

Plastimo Transocean plus, 6 man liferaft, including railing mounts on pushpit, last serviced 2014, valid trough 2017.

ACR 406 Global Fix Float free EPIRB.

Spray hood and bimini with extension pieces.

6.8 kg Fortress anchor mounted on pushpit.

6 x 20 l diesel jerrycans mounted in rear deck lockers with 12 V transfer pump direct to fuel tank.

Storage for 5 gas bottles in rear deck locker with two bottles connected via selector valve.

All gas hoses and two regulators replaced 2014.

2 speakers in cockpit for Radio/CD and VHF radio.

Folding teak table in cockpit.

Security locks on all deck lockers and on companionway hatch.

1.65 m. shallow draught, low profile lead antimony keel.

Rig

Selden, in mast roller reefing mainsail, last inspection 2012.

Selden roller reefing genoa with ST winch for furling line, last inspection 2012.

Rod kicker with gas spring.

Mast steps to mast head.

Inner vorstay with pelican hook for quick installation/removal.

Extra Sails

Complete spinnaker equipment including spiboom and sheet leads etc.

Genaker, Northsails Easy Midi, with snuffer and sheets.

Northsails storm jib for mounting on seperate inner forestay.

Autopilot

Raymarine 150G with gyro plus sensor for efficient course control.

Control via Raymarine ST6000 on steering pedestal.

Electrical equipment

6 kW, 230 Volt, 2 cylinder diesel generator, Fischer Panda 8000 PMS in in sound proof housing.

Air-X wind generator with new type carbon blades for quieter operation.

Quick 45 amp 230 Volt battery charger wth 3 outlets.

1 Motor battery and two 160 Ah service batteries.

1 Seperate battery for generator starting.

Sterling "Pro Digital" alternator to battery charger for optimal battery charging under motor.

12 Volt outlet on steering pedestal.

Tri colour light on mast top for sailing.

Instruments and navigation

Raymarine RL70CRC radar/plotter at chart table.

Raymarine RL70C radar/plotter on steering pedestal.

Raymarine RS125 GPS

Raymarine 18" 2kW radome.

Raymarine ST60 sumlog.

Raymarine ST60 echo sounder.

Raymarine ST60 wind instrumet.

Raymarine ST6000 autopilot control.

Fastnet FMD50 weather decoder and short wave receiver, with connection to PC.

Simrad RS 87 Marine VHF with DSC and data connection to GPS.

Simrad HT50 handheld VHF.

RR DSC Pacific all in one antenna system on mast head, for VHF, shortwave, FM radio, TV and cellphone reception.

Ground plate for better radio performance.

Hagenuk active radar reflector with alarm function.

Fresh water system

Katadyn Powersurvivor 160E, 12 V reverse osmosis system, 25 l product water per hour.

Quick BX 2012, 20 litre stainless steel water heater, heated from 230 V and from the motor. (New 2010)

Thermostatic mixing valve to regulate the temperature of the water in the hot water system.

Motor and sail drive

Volvo Penta MD2-55 diesel, regularly serviced as per Volvo recommendations.

Sail drive membrane changed 2012 and 3 blade propeller renewed 2013.

Double fuel filters with quick change over valves.

Bow thruster:  Side Power SP75

Interior equipment

Webasto Air Top 5000, hot air heating system with outlets in saloon and aft cabin.

Blaupunkt Sanfrancisco 310 Radio/CD player, new 2012, with SD slot and USB input.

Speakers in saloon and cockpit.

Grundig Davio TV with built in sat receiver.

Remote gas shutoff solenoid with switch in galley.

60 litre black water tank with sea dump valve and deck pump-out.

Lee cloth on berth in saloon.

Extra book shelves and cupboard for TV.

Dinghy

Zodiac Cadet, 2.85 m. with UV protection cover.

Mercury/Mariner 5 hp outboard.

Davits, specially designed for inflatables, with the possibility for use as a crane for mounting the outboard etc.

Diverse

Full cover for protection in winter storage.

Universal boarding and fender plank.
